Does this hdd work in the AA1 110?

Discussion in 'Storage' started by jimel, Jan 7, 2009.

  1. jimel

    jimel

    Joined:
    Jan 7, 2009
    Messages:
    4
    Likes Received:
    0
    Location:
    Sweden
    Hi all, first post in the forum but have been reading for a while, got my AA1 110 with the 8gb SSD for about one week ago and yeasterday i put in XP but the SSD is a bit slow as you know. Therefor i took my Archos MP3 HDD player and dissasembled it and now i wonder if you know if it fits instead of the SSD?

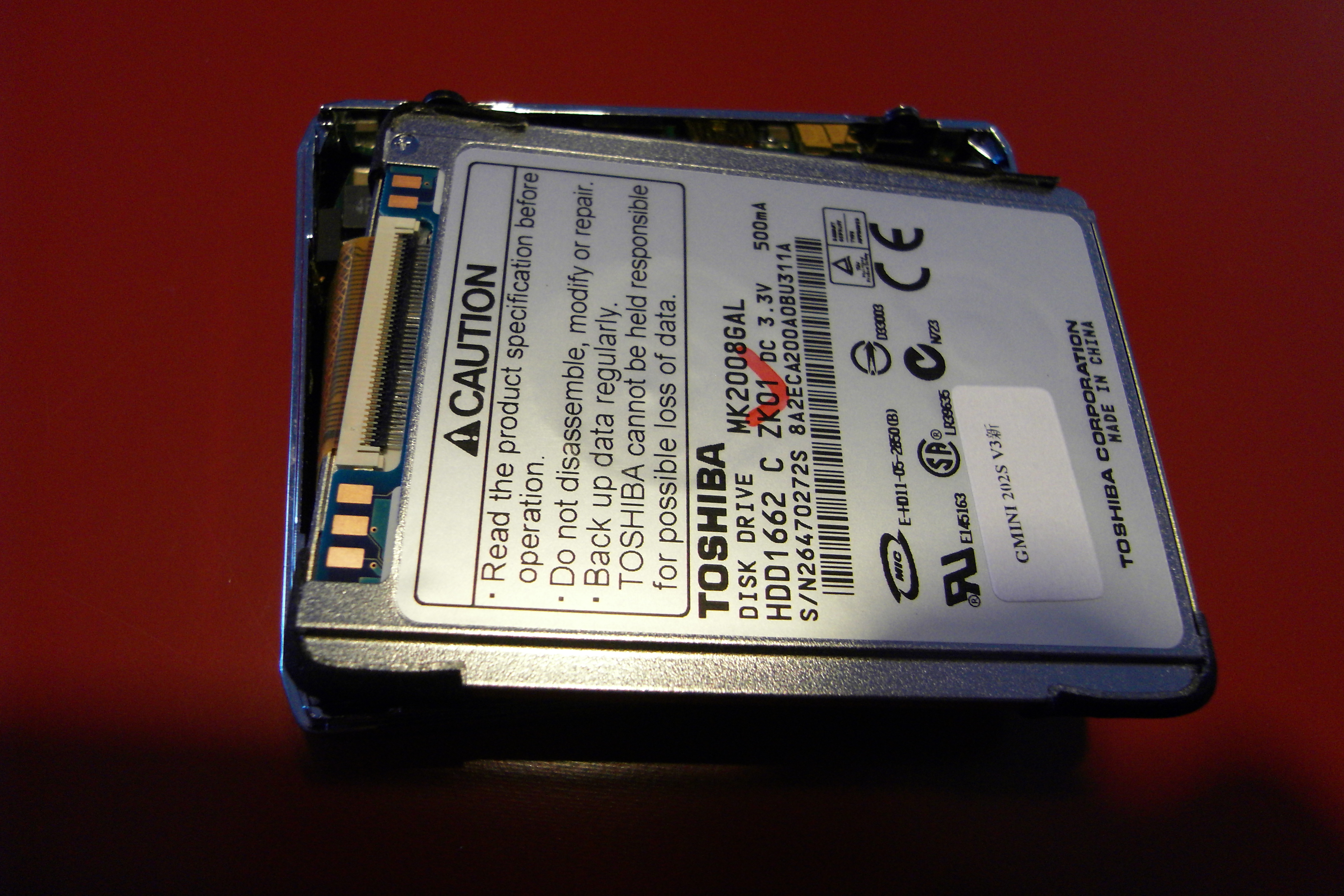

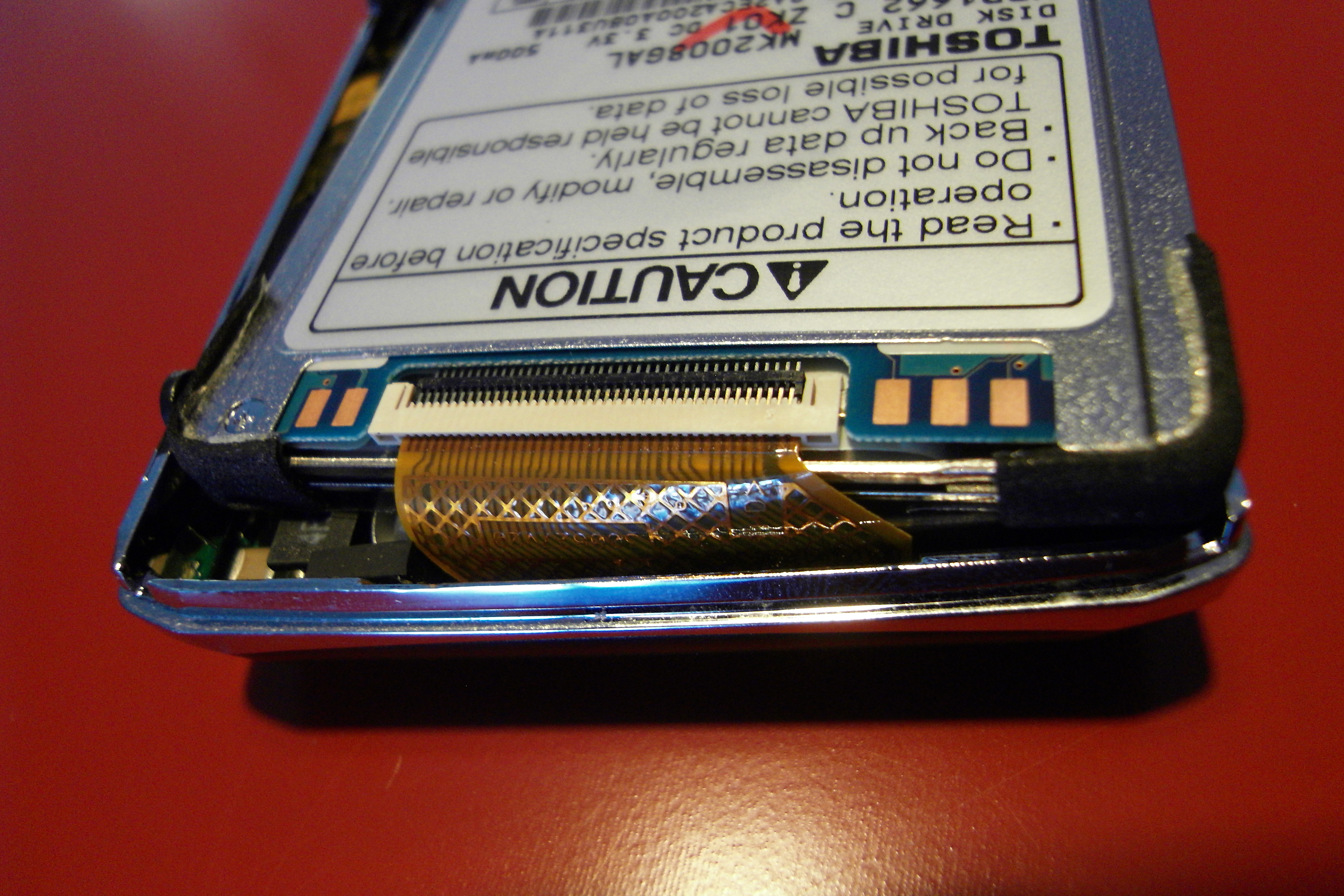

    Pics and more:
    http://sdd.toshiba.com/techdocs/MK2008GALUserGuide-Rev02.pdf
    http://www.minhembio.com/forum/uploads/monthly_01_2009/post-32050-1231326540.jpg
    http://www.minhembio.com/forum/uploads/monthly_01_2009/post-32050-1231326553.jpg

    jimel, Jan 7, 2009
    #1
  2. jimel

    ronime

    Joined:
    Nov 3, 2008
    Messages:
    486
    Likes Received:
    0
    Location:
    West Yorkshire, UK
    Yes that should fit in the 110 case and appears to have the correct ZIF/LIF connector.

    There are plenty of pictorial guides on the web to help you. You should be aware that the performance of these 1.8" disks is not all that great and the installation process is a bit of a hack. You will also need to acquire a new ribbon cable or modify your existing one to fit in the LIF connector on the Toshiba drive.

    Good luck.

    ronime, Jan 7, 2009
    #2
  3. jimel

    jimel

    Joined:
    Jan 7, 2009
    Messages:
    4
    Likes Received:
    0
    Location:
    Sweden
    Ok so its not just plugg n play, too bad :(

    jimel, Jan 7, 2009
    #3
